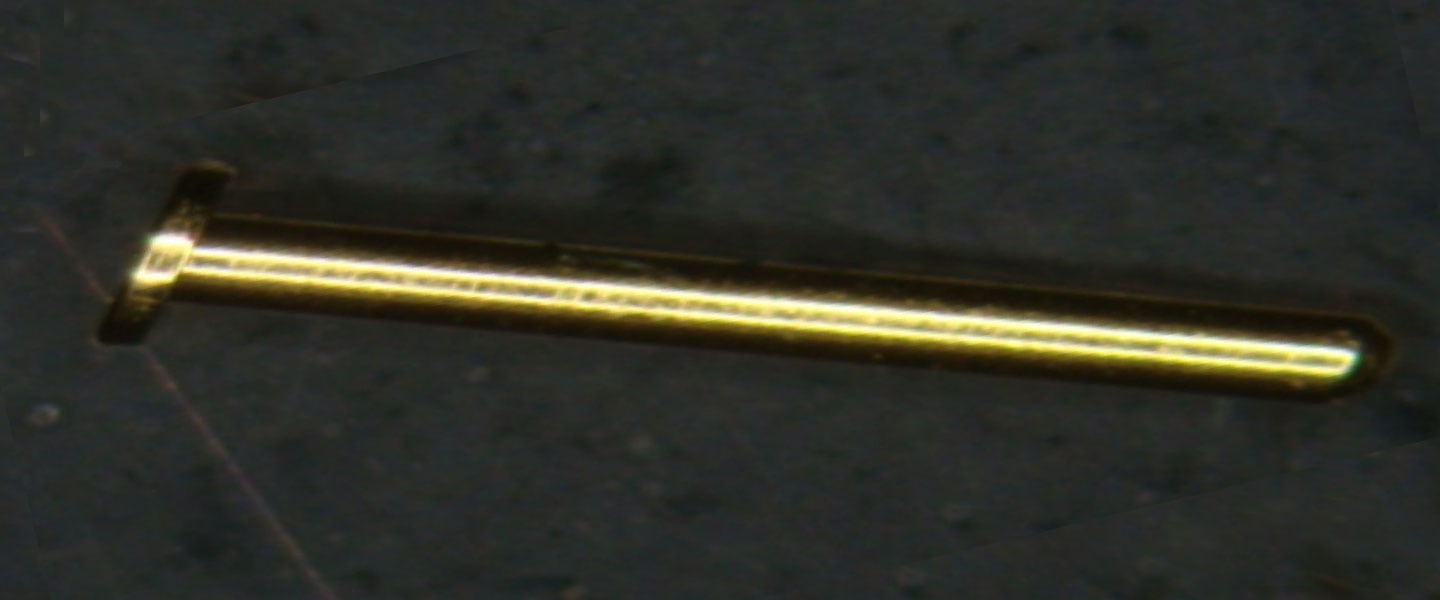

Tintronics completed a Nail Head Pin in a surface mount tape carrier on a board assembly application for a military client. The company used a custom-designed 16 mm embossed carrier and completed visual and final inspections. The Nail Head Pin met extremely tight tolerances of A=.76 mm + .5 mm, B=.76 mm + .5 mm and K=4.19 mm as well as EIA-481 and customer-supplied specifications. Surface mount tape and reel equipment was used to package the components. The production runs were high-volume.

Project Highlights for Surface Mount Tape Carrier for the Military

Product DescriptionNail Head Pin used for Board Assembly application
Capabilities Applied/ProcessesPrimary:
Tape & Reel Packaging
Secondary:
Inspection
Equipment Used to Package ComponentsSurface Mount Tape and Reel equipment
Tightest TolerancesA=.76 mm + .5 mm
B=.76 mm + .5 mm
K=4.19 mm
Material UsedCustom designed 16 mm embossed carrier
In process testing performedVisual Inspection
Final Inspection
Industry for UseDefense
QuantityHigh volume
Standards MetCustomer supplied specifications
EIA-481
Project NameNail Head Pin in Surface Mount Tape Carrier
